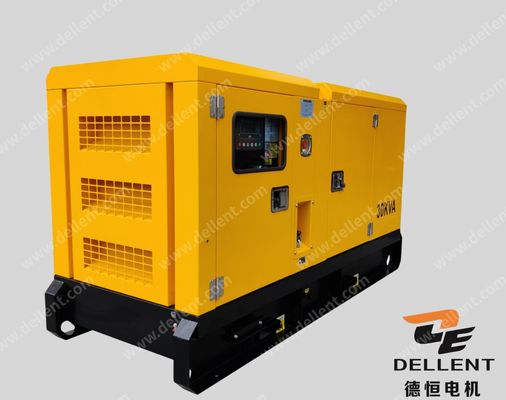

Three Phase 50HZ 24kW Deutz 30 Kva Generator BFM3 G2 Engine Diesel Generator

  • Three Phase 50HZ 24kW Deutz 30 Kva Generator BFM3 G2 Engine Diesel Generator
Place of Origin CHINA
Brand Name DELLENT
Certification CE ISO
Model Number DE-DD33
Minimum Order Quantity 1*20GP CONTAINER
Price USD3000-4000
Packaging Details PLASTIC WRAP
Delivery Time 30 DAYS
Payment Terms L/C, T/T, Western Union
Supply Ability 500 PCS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Deutz 30 Kva Generator Controller Smartgen/Deepsea/ComAp
Cooling System Water Cooling Frequency 50HZ
Insulation Class H Noise Level ≤75dB(A)
Phase Three Phase Power Diesel Generator
Protection Grade IP23 Prime Power 24kW/30kVA
Standby Power 26.4kW/33kVA
Highlight

Three Phase Deutz 30 Kva Generator

,

Diesel Generator Deutz 30 Kva Generator

,

G2 Engine Diesel Generator
Leave a Message
Product Description
High Light:

Commercial Deutz 30kVA Generator

,

BFM3 G2 Engine Diesel Generator

,

CE Deutz 30kva Generator

Ⅰ. PRODUCT DESCRIPTION

CE Commercial 24kW Deutz 30kVA Generator BFM3C Engine Diesel Generator
Product Introduce:
Deutz engine diesel generator we have all series from  rated 20kva to 750kva.
Application fields:
Diesel generator are used in any situation where a reliable backup power source is necessary to maintain continuity of operations.
For example:
Healthcare,Data Centers,Telecommunications,Construction,Manufacturing,Oil and Gas,Military,Residential electricity.
Advantage of our Deutz diesel generator :
Deutz diesel generator have a sturdy housing；
Longer lifespan；
Lower maintenance costs；
Lower noise level；
Faster delivery time；
Better team service；
Higher level technical support.
Three Phase 50HZ 24kW Deutz 30 Kva Generator BFM3 G2 Engine Diesel Generator 0

Product parameters:



Specification of 50kVA Deutz Diesel Generator Set:

Model DE-DD33
Prime Power kVA 24
kW 30
Standby Power kVA 33
kW 26.4
Frequency Hz 50
Output Voltage V 240



Specification of Deutz Alternator:

Engine Model BFM3 G2
No.of Cylinder 4 Cylinder in line
Bore mm 98
Stroke mm 105
Displacement L 3.168
Cooling Fan Air Flow m3/min 78.66666667
Compress Air Flow m3/min 3.333333333
Exhaust Gas Flow m3/min 6.583333333
Exhaust Gas Temperature ℃ 530
Lubrication Oil Capacity L 7.5
Cooling Water Capacity L 4.8
Starting Voltage V 12
Engine Max.Output Power kW 29

Specification of Control Panel:

Controller Brand Smartgen
Breaker Brand Delixi
Breaker Capacity (A) 100
Emergency Stop Button Supply
Automatic Mains Fail (AMF) Supply
Fuel Level Supply
Automatic Transfer Switch ATS as optional part
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.




Ⅱ. Why Choose Us:

Three Phase 50HZ 24kW Deutz 30 Kva Generator BFM3 G2 Engine Diesel Generator 1

Ⅲ. QUALIFICATION CENTIFICATE:Three Phase 50HZ 24kW Deutz 30 Kva Generator BFM3 G2 Engine Diesel Generator 2

Ⅳ. FACTORY INTERIOR:

Three Phase 50HZ 24kW Deutz 30 Kva Generator BFM3 G2 Engine Diesel Generator 3

Features:



  • Deutz diesel generator with 24 Volt electric starter ensures easy starting
  • Complete gen-set with low oil pressure shut down the system
  • Low fuel cut-out protection



If you need Deutz generator with other models technical data, kindly contact us for catalogues!
