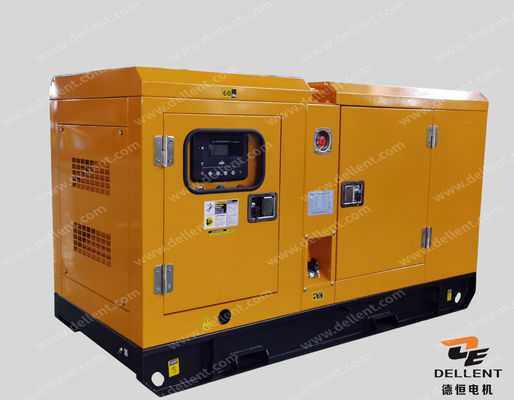

50HZ 40kw Diesel Generator Set 50kva 3 Phase BFM3C Engine Diesel Generator
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | 40kw Diesel Generator | Controller | Smartgen/Deepsea/ComAp |
---|---|---|---|
Cooling System | Water Cooling | Frequency | 50HZ |
Insulation Class | H | Noise Level | ≤75dB(A) |
Phase | Three Phase | Power | Diesel Generator |
Protection Grade | IP23 | Prime Power | 40kW/50kVA |
Standby Power | 44kW/55kVA | ||
Highlight | 40kw Diesel Generator,Diesel Generator Set 50kva,50kva 3 Phase Generator |
Commercial Deutz 50kVA Generator
,BFM3C Engine Diesel Generator
,CE Deutz 50kva Generator
Ⅰ.PRODUCT DESCRIPTION
For example:
Healthcare,Data Centers,Telecommunications,Construction,Manufacturing,Oil and Gas,Military,Residential electricity.
Longer lifespan;
Lower maintenance costs;
Lower noise level;
Faster delivery time;
Better team service;
Higher level technical support.
Product parameters:
Specification of 50kVA Deutz Diesel Generator Set:
Model | DE-DD55 | |
Max. Power | kVA | 55 |
kW | 44 | |
Rate Power | kVA | 50 |
kW | 40 | |
Frequency | Hz | 50 |
Rate Voltage | V | 400/230 |
Rate Current | A | 72.2 |
Specification of Deutz Alternator:
Engine Manufacturer | Deutz (Dalian) Engine Co., Ltd. | |
Engine Brand | Deutz | |
Engine Model | BFM3C | |
No. of Cylinder | 4 Cylinder in line | |
Aspiration | Turbocharger, after-cooled | |
Governor | Electric | |
Engine Max. Output Power | kW | 50 |
Displacement | L | 3.2 |
Compression Ratio | 18.5 : 1 | |
Starting Voltage | V | 12 |
Bore | mm | 98 |
Stroke | mm | 105 |
Lubrication Oil Capacity | L | 7.5 |
Intake Air Flow | M3/Min | N.A. |
Fuel Consumption at 100% Load | L/H | 11.2 |
Specification of Control Panel:
Controller Brand | Smartgen | |
Breaker Brand | Delixi | |
Breaker Capacity (A) | 100 | |
Emergency Stop Button | Supply | |
Automatic Mains Fail (AMF) | Supply | |
Fuel Level | Supply | |
Automatic Transfer Switch | ATS as optional part | |
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm). | ||
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller. |
Ⅱ. Why Choose Us:
Ⅲ. QUALIFICATION CENTIFICATE:
Ⅳ. FACTORY INTERIOR:
FAQ
Q: What's your delivery time?
A: Standard product 20 days - 30 days.
Q: Can we add our logo to products?
A: Yes, there are several ways to do this. We can put the label of your logo on the products or make the silk print of your logo on the products. It is free.
