DELLENT 188kVA soundproof diesel generator powered by SDEC

  • DELLENT 188kVA soundproof diesel generator powered by SDEC
Place of Origin CHINA
Brand Name DELLENT
Certification CE/ISO9001
Model Number DE-SC206SC
Minimum Order Quantity 1*20GP
Price face to face
Packaging Details PLASTIC WRAP OR PLYWOOD CASE
Delivery Time 30 DAYS FROM DEPOSIT RECEIVED
Payment Terms L/C, T/T
Supply Ability 500 PCS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name SDEC Diesel Generator 188kva Engine Model SC7H250D2
Frequency 50Hz Engine Brand SDEC
No. Of Cylinder 6 Cylinder In Line Rated Speed 1500rpm
Voltage 400V/230V Warranty 12 Months
Controller Smartgen Prime Power 150kW/188kVA
Standby Power 165kW/206kVA
Leave a Message
Product Description

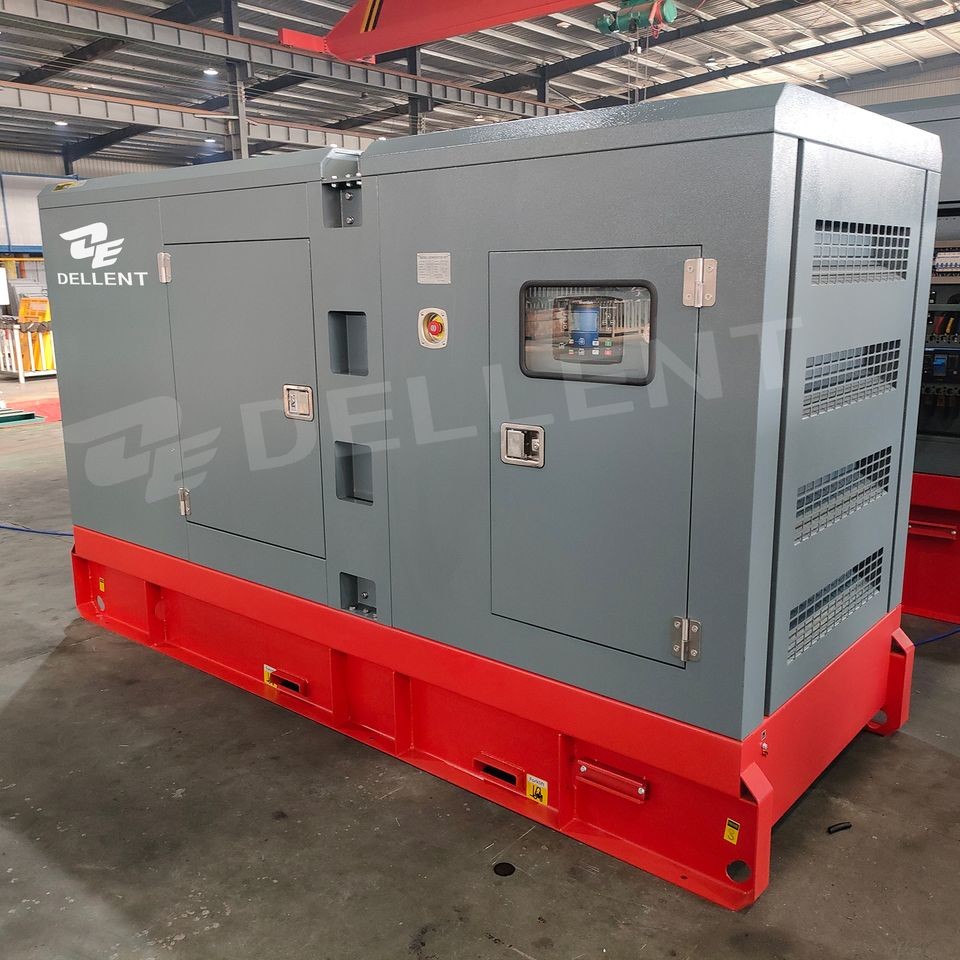

DELLENT 188kVA soundproof diesel generator powered by SDEC

Ⅰ. PRODUCT DESCRIPTION



DELLENT 188kVA soundproof diesel generator powered by SDEC 0DELLENT 188kVA soundproof diesel generator powered by SDEC 1

188kVA Diesel Generator Powered by SDEC Diesel Engine:

Model DE-SC206SC
Max. Power kVA 188
kW 150
Rate Power kVA 206
kW 165
Frequency Hz 50
Rate Voltage V 400/230
Rate Current A 270.6

SDEC Diesel Engine:

Engine Specification
Engine Manufacturer Shanghai Diesel Engine Co., Ltd.
Engine Brand SDEC
Engine Model SC7H250D2
No. of Cylinder 6 Cylinder in line
Aspiration Turbocharged and Aftercooled
Governor Electric
Engine Max. Output Power kW 185
Displacement L 4.300
Starting Voltage V 24
Bore mm 105
Stroke mm 124
Lubrication Oil Capacity L 11-13
Compression Ratio 16 : 1
Intake Air Flow M3/Min 6.8
Fuel Consumption at 100% Load L/H 23.0

Specification of Control Panel:

Control Panel Specification
Controller Brand Smartgen
Breaker Brand Delixi
Battery Charger Smartgen Model BAC06A
Emergency Stop Button Supply
Automatic Mains Fail (AMF) Supply
Fuel Level Supply
Automatic Transfer Switch ATS as optional part
Mains Monitor Supply with AFM Function
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

Ⅱ. Why Choose Us:

DELLENT 188kVA soundproof diesel generator powered by SDEC 2Ⅲ. QUALIFICATION CENTIFICATE:

DELLENT 188kVA soundproof diesel generator powered by SDEC 3

Ⅳ. FACTORY INTERIOR:

DELLENT 188kVA soundproof diesel generator powered by SDEC 4

1: On site: Due to the advantages of high efficiency, energy conservation, and strong load capacity, diesel generators are commonly used on site to provide power supply for construction sites, mines, etc;

2: Rural areas: Diesel generators can provide power supply in rural areas without stable power grids to meet the electricity needs of rural residents;

3: Ship field: Diesel generators can provide power supply for ships to meet their navigation and living needs;

4: Emergency backup power supply: Diesel generators can serve as emergency backup power sources to provide power support for important places such as hospitals, banks, telecommunications, etc;

5: Other fields: Diesel generators can also be applied in fields such as power engineering, military, aerospace, etc;

6: Diesel generators can be applied to different climatic conditions, including cold, hot, and other climatic conditions
