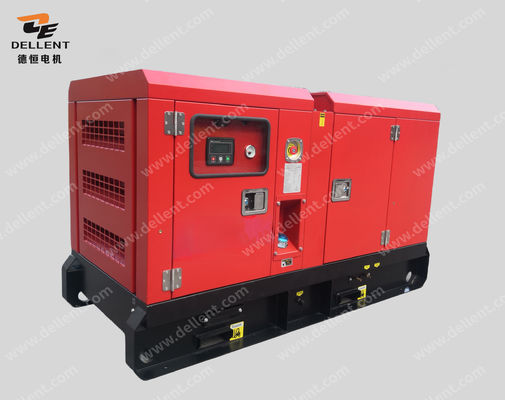

Standby Power Ricardo Diesel Generator 22kVA 18kW 50Hz With 4 Cylinder In Line

  • Standby Power Ricardo Diesel Generator 22kVA 18kW 50Hz With 4 Cylinder In Line
Place of Origin CHINA
Brand Name DELLENT
Certification CE/ISO9001
Model Number DE-W22
Minimum Order Quantity 1*20GP
Price face to face
Packaging Details PLASTIC WRAP OR PLYWOOD CASE
Delivery Time 30 DAYS FROM DEPOSIT RECEIVED
Payment Terms L/C, T/T
Supply Ability 500 PCS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Ricardo Diesel Generator 22kVA Frequency 50Hz
Engine Brand Ricardo Engine Model 4YT23-20D
No. Of Cylinder 4 Cylinder In Line Rated Speed 1500rpm
Voltage 400V/230V Warranty 12 Months
Controller Deepsea/ ComAp/ Smartgen Prime Power 16kW/20kVA
Standby Power 18kW/22kVA
Highlight

Standby Power Ricardo Diesel Generator

,

Ricardo Diesel Generator 22kVA

,

22kVA Diesel Generator
Leave a Message
Product Description

50Hz 18kW 22kVA Standby Power of Ricardo Diesel Generator

Ⅰ. PRODUCT DESCRIPTION



50Hz 18kW 22kVA Standby Power of Ricardo Diesel Generator

125kVA Diesel Generator Powered by Ricardo Diesel Engine:

Model DE-W22
Max. Power kVA 22.0
kW 18.0
Rate Power kVA 20.0
kW 16.0
Frequency Hz 50
Rate Voltage V 400/230
Rate Current A 28.87

Ricarod Diesel Engine:

Engine Manufacturer Kofo
Engine Brand Ricardo
Engine Model 4YT23-20D
No. of Cylinder 4 Cylinder in line
Aspiration Turbocharger and After-cooled
Governor Mechanical
Engine Max. Output Power kW 20
Displacement L 2.31
Starting Voltage V 24
Bore mm 88
Stroke mm 95
Lubrication Oil Capacity L 240



Specification of Control Panel:

Controller Brand Smartgen
Controller Model HGM6120N
Breaker Brand Delixi
Breaker Capacity A 250
Battery Charger Smartgen
Emergency Stop Button Supply
Automatic Mains Fail (AMF) Supply
Fuel Level Supply
Automatic Transfer Switch ATS as optional part
Mains Monitor Supply with DELLENT Function
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

Standby Power Ricardo Diesel Generator 22kVA 18kW 50Hz With 4 Cylinder In Line 0

Standby Power Ricardo Diesel Generator 22kVA 18kW 50Hz With 4 Cylinder In Line 1



Ⅱ. Why Choose Us:

Standby Power Ricardo Diesel Generator 22kVA 18kW 50Hz With 4 Cylinder In Line 2Ⅲ. QUALIFICATION CENTIFICATE:

Standby Power Ricardo Diesel Generator 22kVA 18kW 50Hz With 4 Cylinder In Line 3

Ⅳ. FACTORY INTERIOR:

Standby Power Ricardo Diesel Generator 22kVA 18kW 50Hz With 4 Cylinder In Line 4
