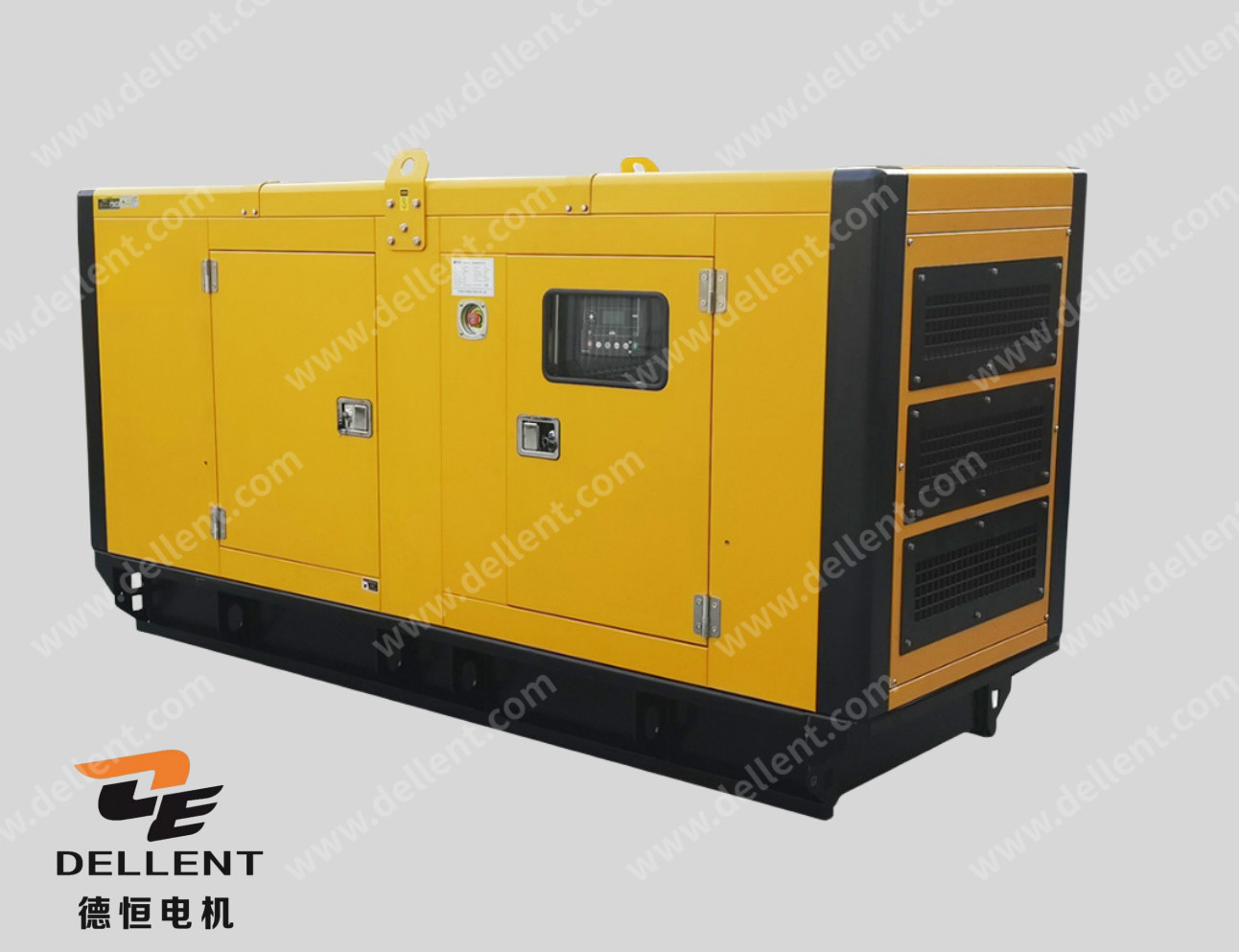

Commercial DP158LD 500 Kva Standby Generator , 500 Kva Doosan Generator

  • Commercial DP158LD 500 Kva Standby Generator , 500 Kva Doosan Generator
Place of Origin CHINA
Brand Name DELLENT-Doosan
Certification CE ISO
Model Number DE-DS500
Document Product Brochure PDF
Minimum Order Quantity 1PC
Price face to face
Packaging Details PLASTIC WRAP
Delivery Time 30 DAYS
Payment Terms L/C, T/T
Supply Ability 500 PCS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 500 Kva Doosan Generator Brand Doosan
Cooling System Water Cooling Frequency 50HZ
Alternator Mecc Alte Brand Phase Three Phase
Type Diesel Generator Controller Smartgen
Engine Model DP158LD Prime Power 500kVA / 400kW
Standby Power 550kVA / 440kW
Highlight

500 Kva Standby Generator

,

500 Kva Doosan Generator
Leave a Message
Product Description
High Light:

Commercial Doosan 500kVA Generator

,

DP158LD Engine Diesel  Generator

,

CE Doosan 500kva Generator ,50HZ

Ⅰ. PRODUCT DESCRIPTION

Product Introduce:Dellent Power Doosan Series generator powered by the original Doosan engine.As an authorized Doosan generator dealer, we offer a wide range of models to suit any power needs and budget. From compact and portable generators to heavy-duty industrial generators, we have the expertise and resources to help you find the perfect generator for your needs.

Commercial DP158LD 500 Kva Standby Generator , 500 Kva Doosan Generator 0

Product parameters:

Specification of 500kVA Emergency Standby Generator:

Model DE-DS500
Max. Power kVA 550
kW 440
Rate Power kVA 500
kW 400
Frequency Hz 50
Rate Voltage V 400/230
Rate Current A 721.7
Fuel Tank Capacity L 800
Dimension For Open-type Genset mm 3050 X 1400 X 1980
Weight For Open-type Genset kg 4000
Dimension For Soundproof Genset mm 3700 X 1650 X 2050
Weight For Soundproof Generator kg 5100
Noise Level for Soundproof Generator at 7M dBA 80


Specification of Doosan Diesel Engine DP158LD:

Engine Manufacturer Doosan Infracore
Engine Brand Doosan
Engine Model DP158LD
No. of Cylinder 8 Cyliner V Type
Aspiration Turbocarged & Aftercooed
Governor Electric
Engine Max. Output Power kW 510
Displacement L 14.6
Compression Ratio 0
Starting Voltage V 24
Bore mm 128
Stroke mm 142
Lubrication Oil Capacity L 28
Intake Air Flow M3/Min 25.3
Fuel Consumption at 100% Load L/H 114.5

Specification of Control Panel :

Specification of Control Panel for 500kVA Emergency Standby Generator:

Controller Brand ComAp
Breaker Brand Delixi
Breaker Capacity (A) 800
Battery Charger Smartgen
Emergency Stop Button Supply
Automatic Mains Fail (AMF) Supply
Fuel Level Supply
Automatic Transfer Switch ATS as optional part
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

Ⅱ. Why Choose Us:

Commercial DP158LD 500 Kva Standby Generator , 500 Kva Doosan Generator 1

Ⅲ. QUALIFICATION CENTIFICATE:Commercial DP158LD 500 Kva Standby Generator , 500 Kva Doosan Generator 2

Ⅳ. FACTORY INTERIOR:

Commercial DP158LD 500 Kva Standby Generator , 500 Kva Doosan Generator 3



If you need DOOSAN generator with other models technical data, kindly contact us for catalogues!
