YD480D YANGDONG Diesel Generator 50HZ / 60HZ Low Noise Engine

  • YD480D YANGDONG Diesel Generator 50HZ / 60HZ Low Noise Engine
Place of Origin CHINA
Brand Name DELLENT-YANGDONG
Certification CE/ISO9001
Model Number DE-YD11
Document Product Brochure PDF
Minimum Order Quantity 1*20GP
Price face to face
Packaging Details PLASTIC WRAP OR PLYWOOD CASE
Delivery Time 30 DAYS FROM DEPOSIT RECEIVED
Payment Terms L/C, T/T
Supply Ability 500 PCS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Yangdong Diesel Generator Engine Model YD480D
Frequency 50HZ/60HZ Engine Brand YANGDONG
No. Of Cylinder 4 Cylinder In Line Rated Speed 1500rpm/1800rpm
Voltage 400V/230V Warranty 12 Months
Controller Smartgen
Highlight

YD480D YANGDONG Diesel Generator

,

YANGDONG Diesel Generator 50HZ

,

Yangdong Genset
Leave a Message
Product Description

Low Noise Engine model of YD480D for YANGDONG Diesel Generator

Ⅰ. PRODUCT DESCRIPTION
Product Introduce:
Yangdong diesel generator is China engine.
We have all series from 8kva to 71kva.
Application fields:
Diesel generator are used in any situation where a reliable backup power source is necessary to maintain continuity of operations.
For example:
Healthcare,Data Centers,Telecommunications,Construction,Manufacturing,Oil and Gas,Military,Residential electricity.
Advantage of our Yangdong diesel generator :
Yangdong diesel generator have a sturdy housing；
Longer lifespan；
Lower maintenance costs；
Lower noise level；
Faster delivery time；
Better team service；
Higher level technical support.

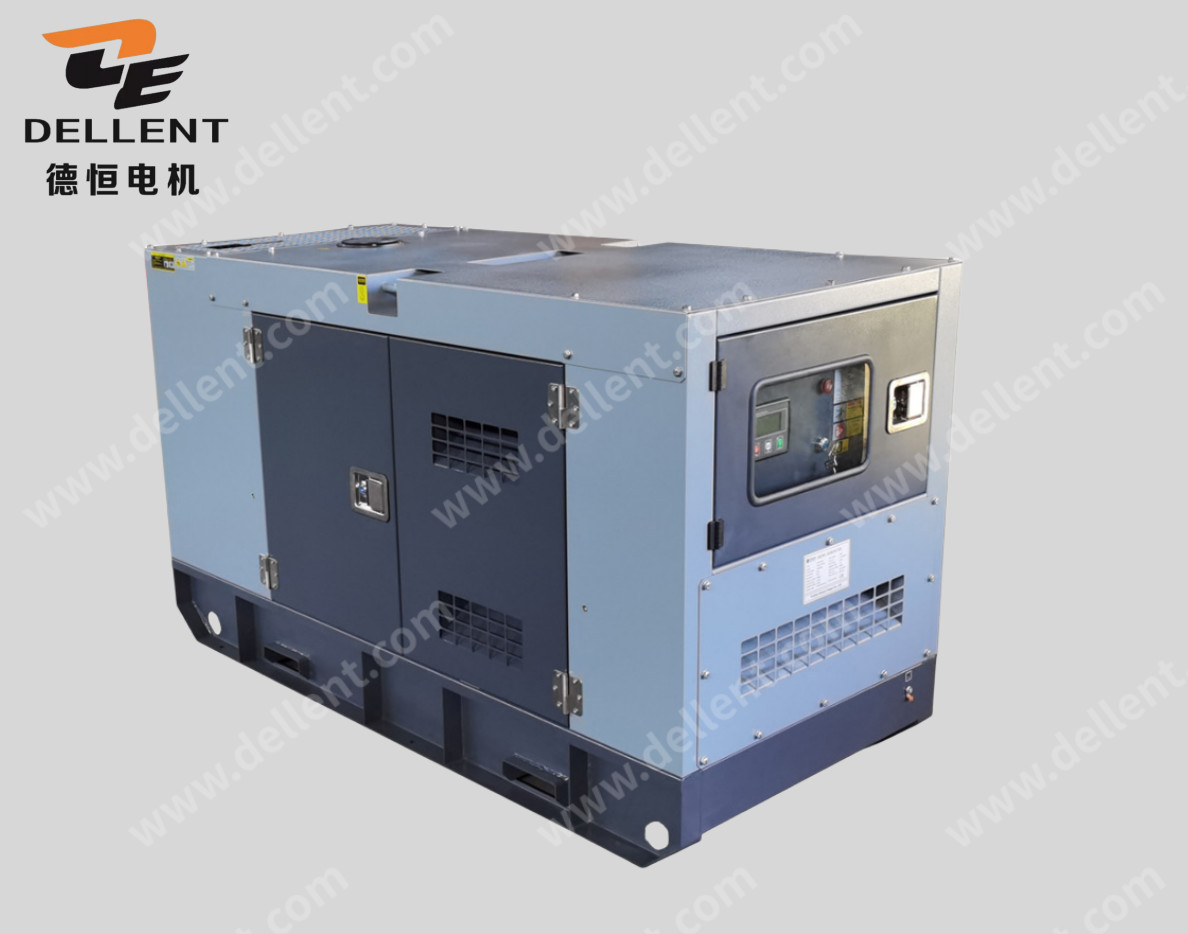

YD480D YANGDONG Diesel Generator 50HZ / 60HZ Low Noise Engine 0
Details GenSet Model DE-YD11 Type Silent(optional open)
Frequency (Hz) 50/60 Speed rpm 1500/1800
Phase 3 SRated voltage 230v/380v/400v/415v
Prime output 8kW/10kVA(1500rpm) Standby output 9kW/11kVA(1500rpm)
13kW/16kva(1800rpm) 14kW/18kva(1800rpm)
Cylinder 4 Cooling system Water
Min specific fuel consumption at full load(g/kW.h) ≤250.5 Overall dimensions L*W*H(mm) 687*494*610
Fuel Con.(L/H) 5.8 Fuel capacity tank 75L
Running time (H) 8 Sound decibel 70DB-75DB
Details Engine Brand Yangdong
Model YD480D Fuel Diesel
Cylinder 4 Cooling system Water-cooling
Cylider arrangemant IN-LINE Bore and Stroke(mm) 80×90
Cyle 4 Staoke Compression ratio 18.0:1
Governor Mechanical Displacement(L) 1.809/2.156
Details Alternator Brand Stamford, Leroy Somer, Mecc Alte
Model PI 044D/TAL-A40-C/LSA 40 VS0/ECP28 1VS4C
No.of bearings 1 Insulation class H
Wires 12 Ingress protection IP23
Excitation system Shunt Volrage ±1%
Optional single phase
Delivery date
Custom 30 working days after payment
For more details please contact us

Ⅱ. Why Choose Us:

YD480D YANGDONG Diesel Generator 50HZ / 60HZ Low Noise Engine 1Ⅲ. QUALIFICATION CENTIFICATE:

YD480D YANGDONG Diesel Generator 50HZ / 60HZ Low Noise Engine 2

Ⅳ. FACTORY INTERIOR:

YD480D YANGDONG Diesel Generator 50HZ / 60HZ Low Noise Engine 3
