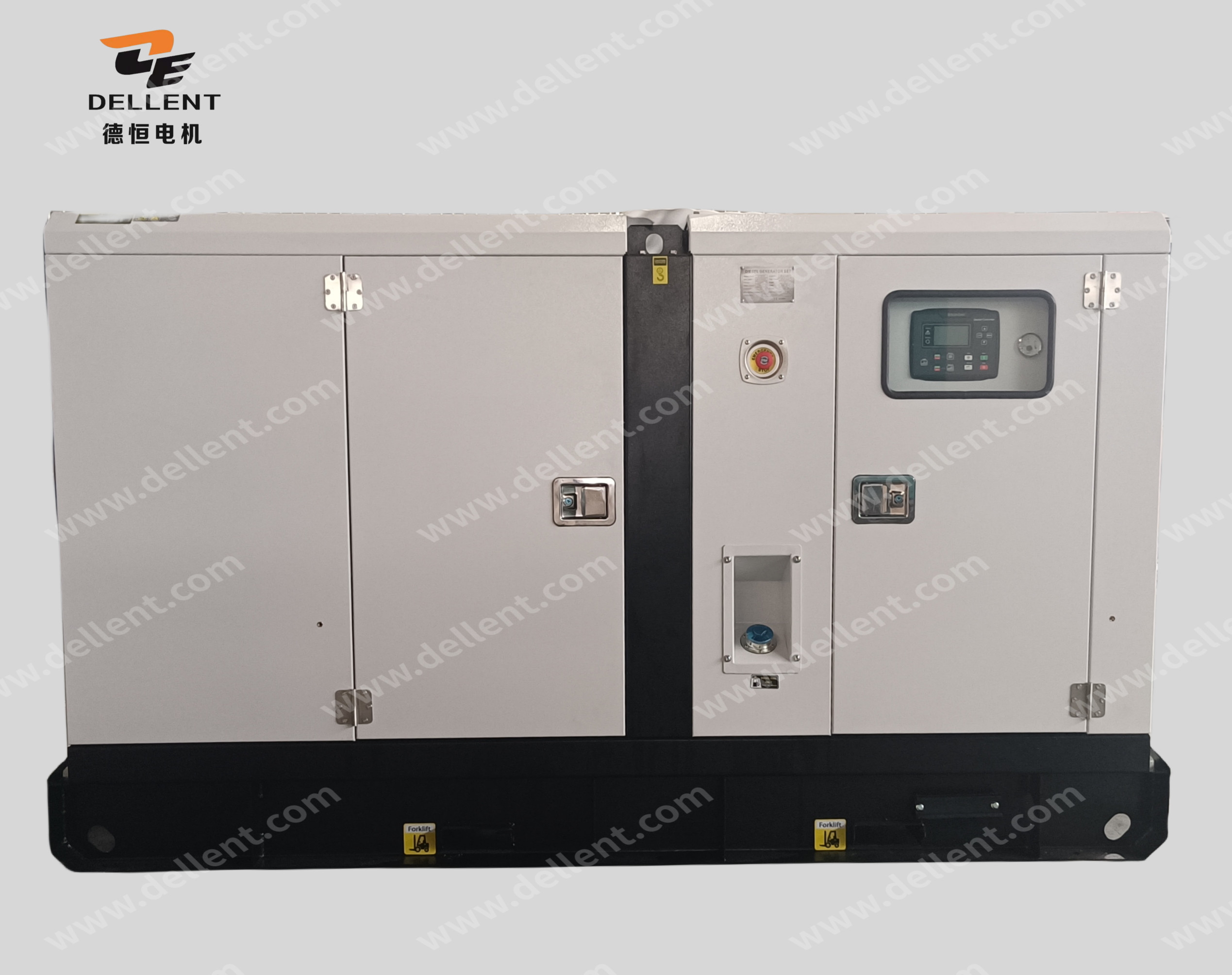

50Hz 80kVA Cummins Diesel Generator Water Cooling With 4BTA3.9-G11Engine

  • 50Hz 80kVA Cummins Diesel Generator Water Cooling With 4BTA3.9-G11Engine
Place of Origin CHINA
Brand Name DELLENT
Certification CE/ISO9001
Model Number DE-C90
Minimum Order Quantity 1 PC
Price bargain face-to-face
Packaging Details PLASTIC WRAP OR PLYWOOD CASE
Delivery Time 20-30 DAYS
Payment Terms L/C, T/T
Supply Ability 1 MONTH 600PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Engine Brand Cummins Engine Model 4BTA3.9-G11
Cooling Method Water-Cooling System Fuel Type Diesel
Prime Power 80kVA / 64kW Standby Power 90kVA /72kW
Rated Frequency 50HZ Speed 1500RPM
Warranty 12 Months/1000 Hours Genset Type Open Type
Name 80kVA Cummins Diesel Generator
Highlight

80kVA Cummins Diesel Generator

,

Cummins 80 Kva Generator

,

80kVA Diesel Generator
Leave a Message
Product Description

80kVA 50Hz Cummins Generator Set Cummins Power Generator With 4BTA3.9-G11Engine

50Hz 80kVA Cummins Diesel Generator Water Cooling With 4BTA3.9-G11Engine 0

Ⅰ. PRODUCT

 Cummins Engine Generator:



Model DE-C90
Max. Power kVA 90
kW 72
Rate Power kVA 80
kW 64
Frequency Hz 50
Rate Voltage V 400/230
Rate Current A 129.9

Cummins Diesel Engine:

Engine Manufacturer Dongfeng Cummins Engine Co., Ltd.
Engine Brand Cummins
Engine Model 4BTA3.9-G11
No. of Cylinder 4 Cylinder in line
Aspiration Turbocharged & Aftercooled
Governor Electric
Engine Max. Output Power kW 77
Displacement L 3.9
Compression Ratio 17.3 : 1
Starting Voltage V 24
Bore mm 102
Stroke mm 120
Lubrication Oil Capacity L 11
Intake Air Flow L/S 64
Fuel Consumption at 100% Load L/H 17.6

The Control Panel :

Controller Brand Deepsea
Controller Model DSE6120
Breaker Brand Delixi
Breaker Capacity (A) 160
Battery Charger Smartgen Model BAC06A
Emergency Stop Button Supply
Automatic Mains Fail (AMF) Supply
Fuel Level Supply
Automatic Transfer Switch ATS as optional part
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.




Ⅱ. Why Choose Us:

50Hz 80kVA Cummins Diesel Generator Water Cooling With 4BTA3.9-G11Engine 1

Ⅲ. QUALIFICATION CENTIFICATE:

50Hz 80kVA Cummins Diesel Generator Water Cooling With 4BTA3.9-G11Engine 2

Ⅳ. FACTORY INTERIOR:

50Hz 80kVA Cummins Diesel Generator Water Cooling With 4BTA3.9-G11Engine 3

Control Panel

Automatic Start Control Panel

* Compact gen-set controller for gen-sets operating for automatic start/stop, data measure and alarming.

* On/Off button

* Emergency stop button



Packing

EVA Foam Plastic wrap protection package

Alternator, Engine, and Generating set operator's manual are supplied with electrical drawings.
